High-Tenacity Polypropylene Multifilament Yarn

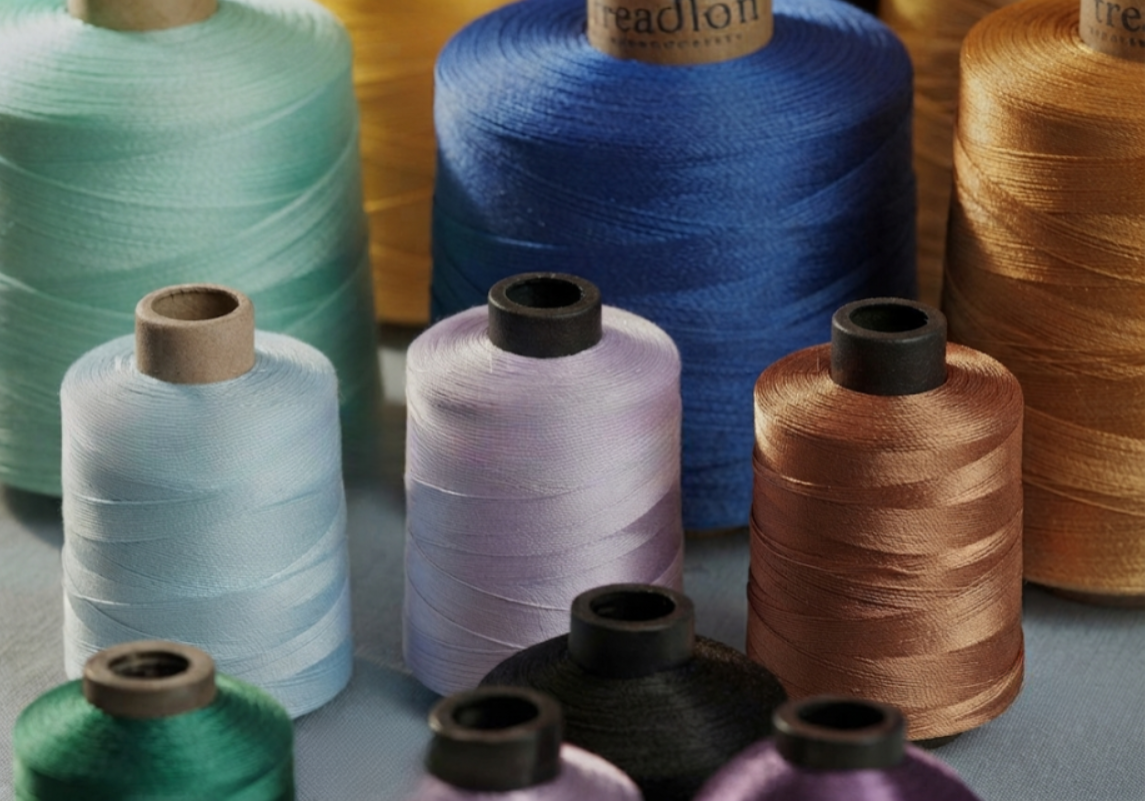

PPMF stands for Polypropylene Multifilament Yarn. It is a yarn made from polypropylene consisting of multiple continuous fine filaments, engineered for high strength, consistency, and application-specific performance.
The yarn can be manufactured in different deniers, strengths, colours, and twist levels depending on the customer’s end application. Gotawat Industries operates as a direct manufacturer delivering high-tenacity polypropylene multifilament yarn to exact technical specifications.
Prominent Manufacturing Production Capacity
How PPMF Yarn is Manufactured
The manufacturing process begins with high-grade polypropylene granules, processed through precision extrusion and spinning equipment:
Polypropylene Granules
Polypropylene raw material is fed into the production system.
Melting & Extrusion
Polypropylene is heated, melted, and conveyed through a screw extruder.
Spinning
Molten polymer passes through fine spinnerets forming continuous filaments.
Quenching
Filaments are rapidly cooled and solidified under controlled airflow.
Drawing
Passes through drawing godets to optimize yarn strength and elongation.
High-Speed Winding
Processed yarn is wound onto precision high-speed winders.
Twisting / Doubling
Further processing through twisting and doubling machines as required.
Product Specifications & Customisation
Standard Product Range
| Denier Range | 840 to 5,000+ denier |
|---|---|
| Twist Level | Approximately 70 – 150 TPM (or as required) |
| Colour Options | Custom colours & masterbatch shades available |
| Tenacity / Strength | High-tenacity, manufactured to customer requirements |
| Product Type | High-tenacity polypropylene multifilament yarn |
Available Customisation
Gotawat Industries can tailor yarn properties according to intended end applications:
- Denier: Custom denier selection
- Colour: Custom color matching
- Strength: Tailored breaking load (KGF)
- Twist / TPM: Specific TPM setting

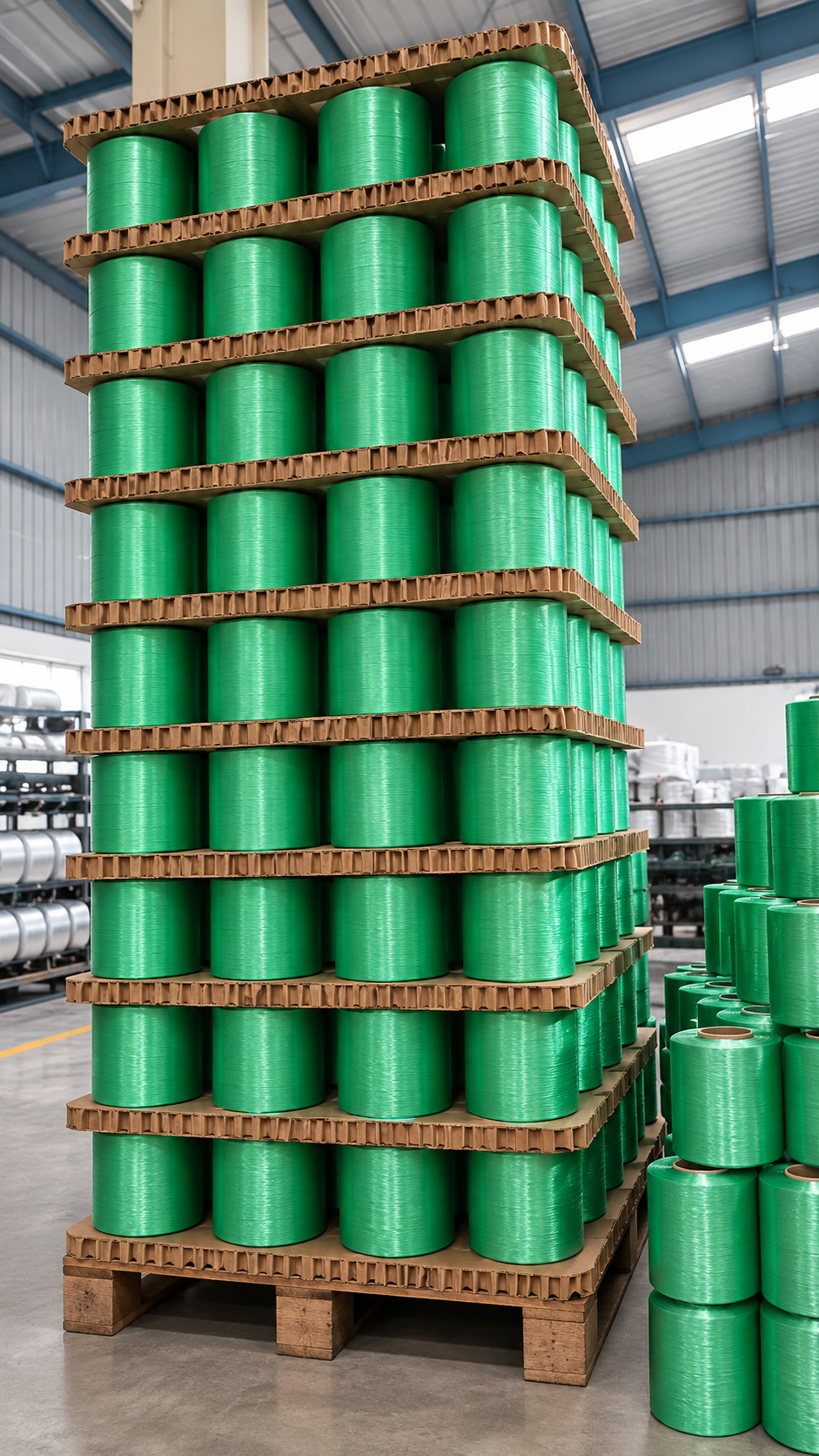

- Packaging & Quantity: Customized spools & packing
- UV Treatment: Customized UV masterbatch
Twisted & Processed Yarn
Yarn wound on high-speed winders can undergo secondary processing to match downstream manufacturing equipment requirements:
Twisting (TPM)
Specialized twisting machines provide twists per metre ranging typically from 70 TPM to 150 TPM or more depending on stitching and braiding needs.
Doubling
Doubling machinery combines multiple yarns according to exact product specs, supplying two-ply and multi-ply yarns for heavy-duty industrial uses.
Applications
(Few applications for bottom & mouth closing)
Salient Features
- High breaking load ( KGF )
- Customized as per customer requirement
- Color Fastness
- Safe to use
- UV protected
- Chemical, Rot and mildew Resistance
- Cost effective stitching
- Smooth running on manual and automatic machines
- Increase in packing efficiency
- Can replace Nylon or Polyester

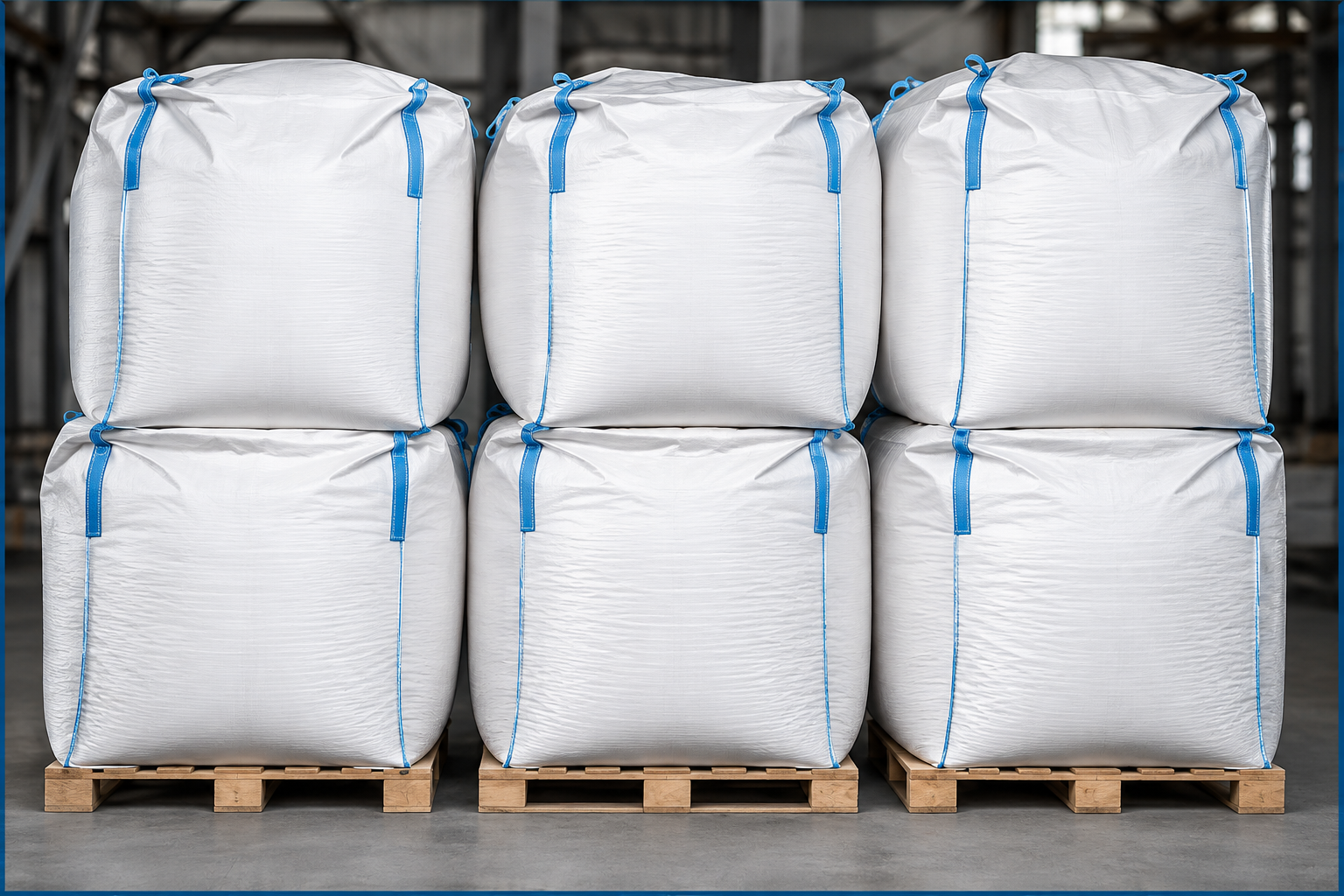

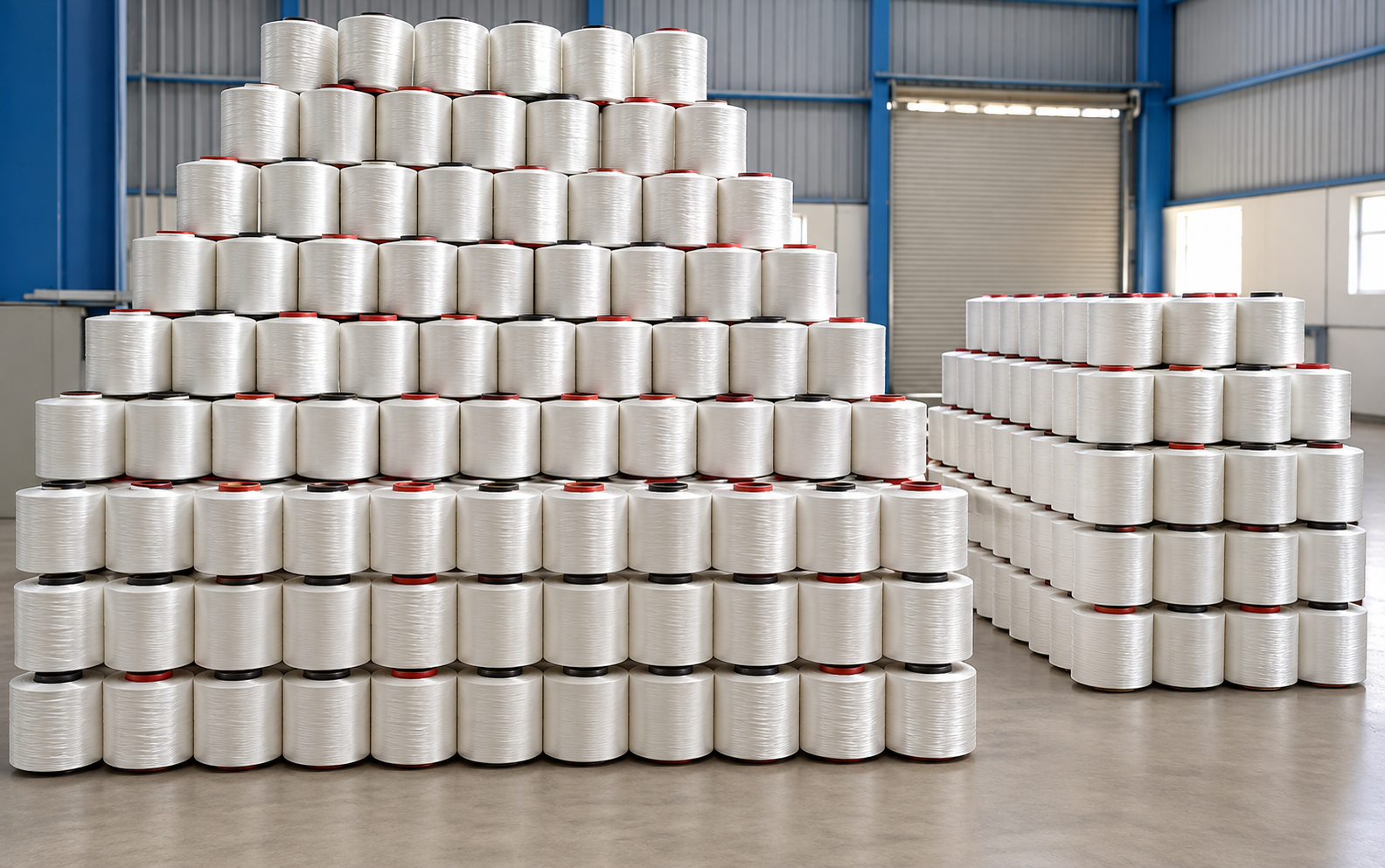

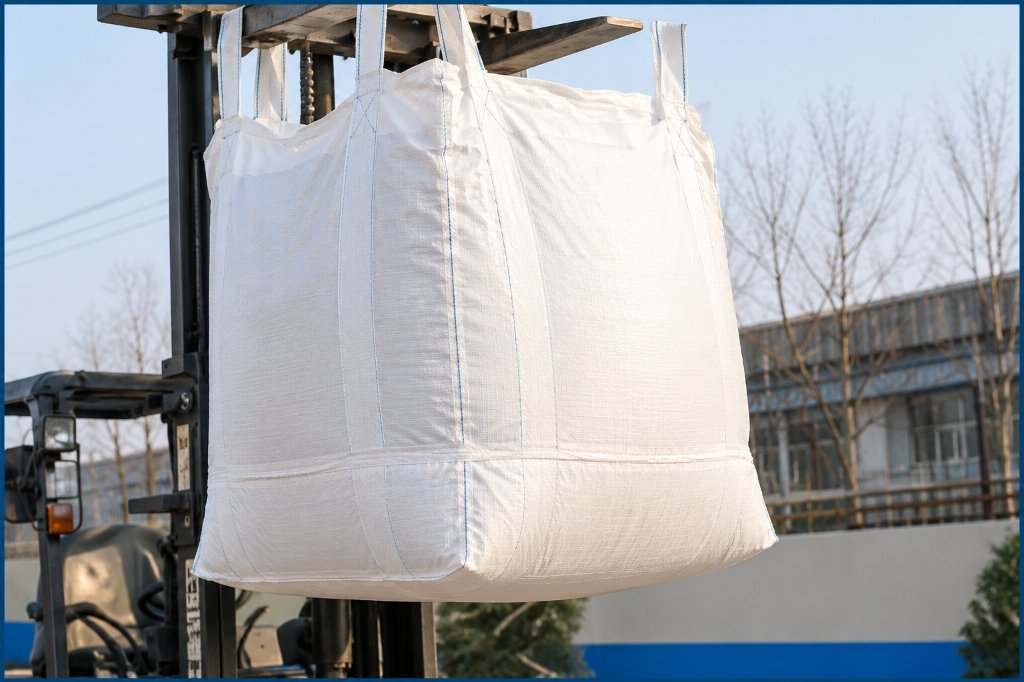

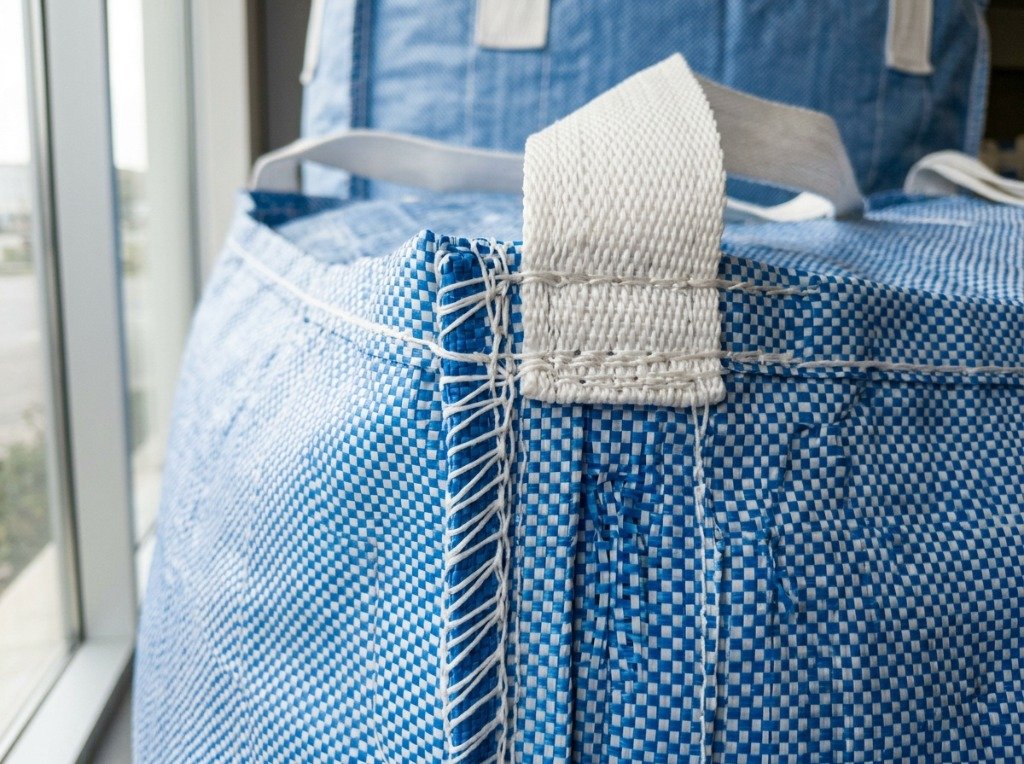

FIBC / Jumbo Bags
Key application for stitching and mouth/bottom closing in heavy-duty jumbo bulk bags across capacities:

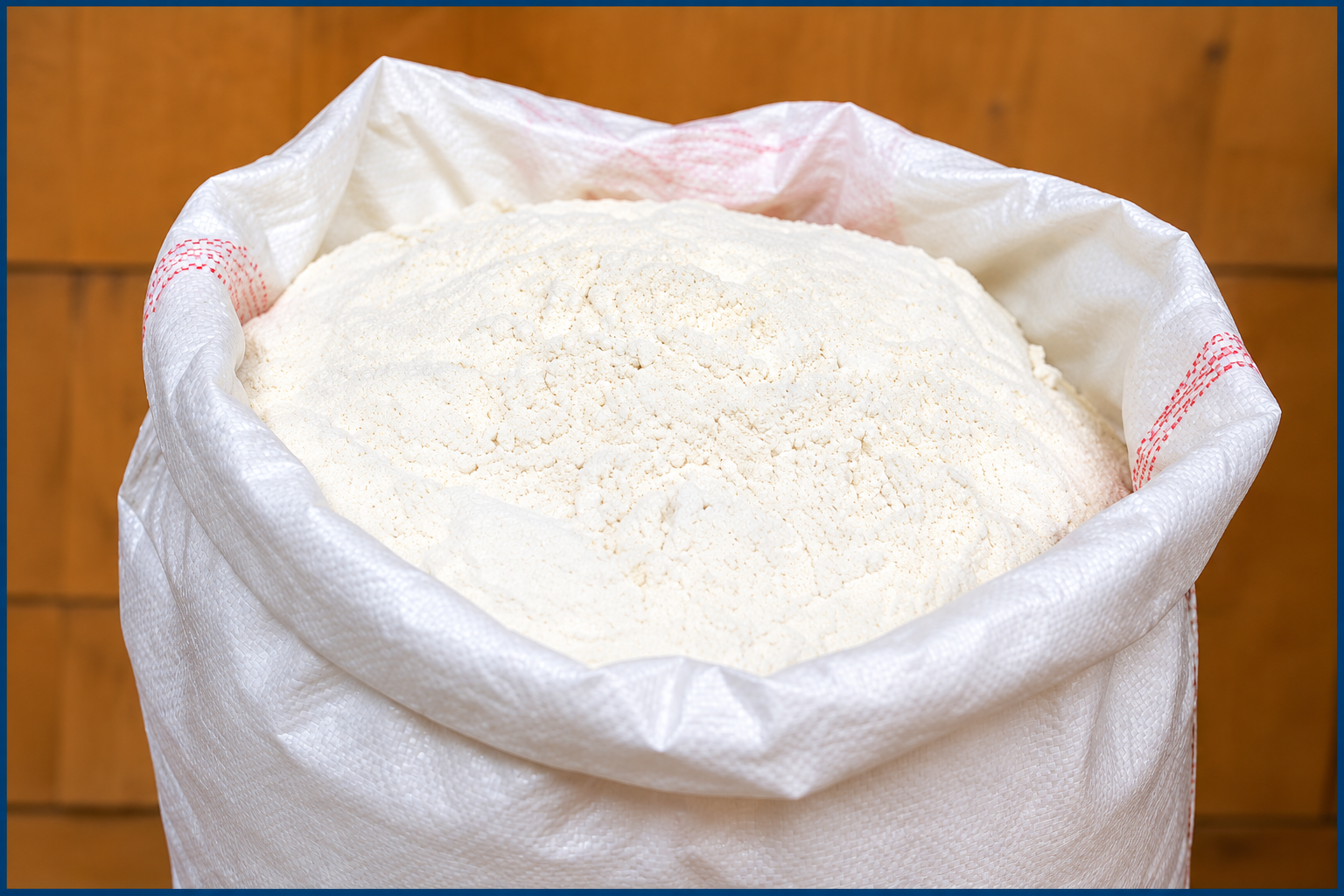

Used for mouth closing, bottom stitching, and structural seams in food, chemical, flour, and grain bags.

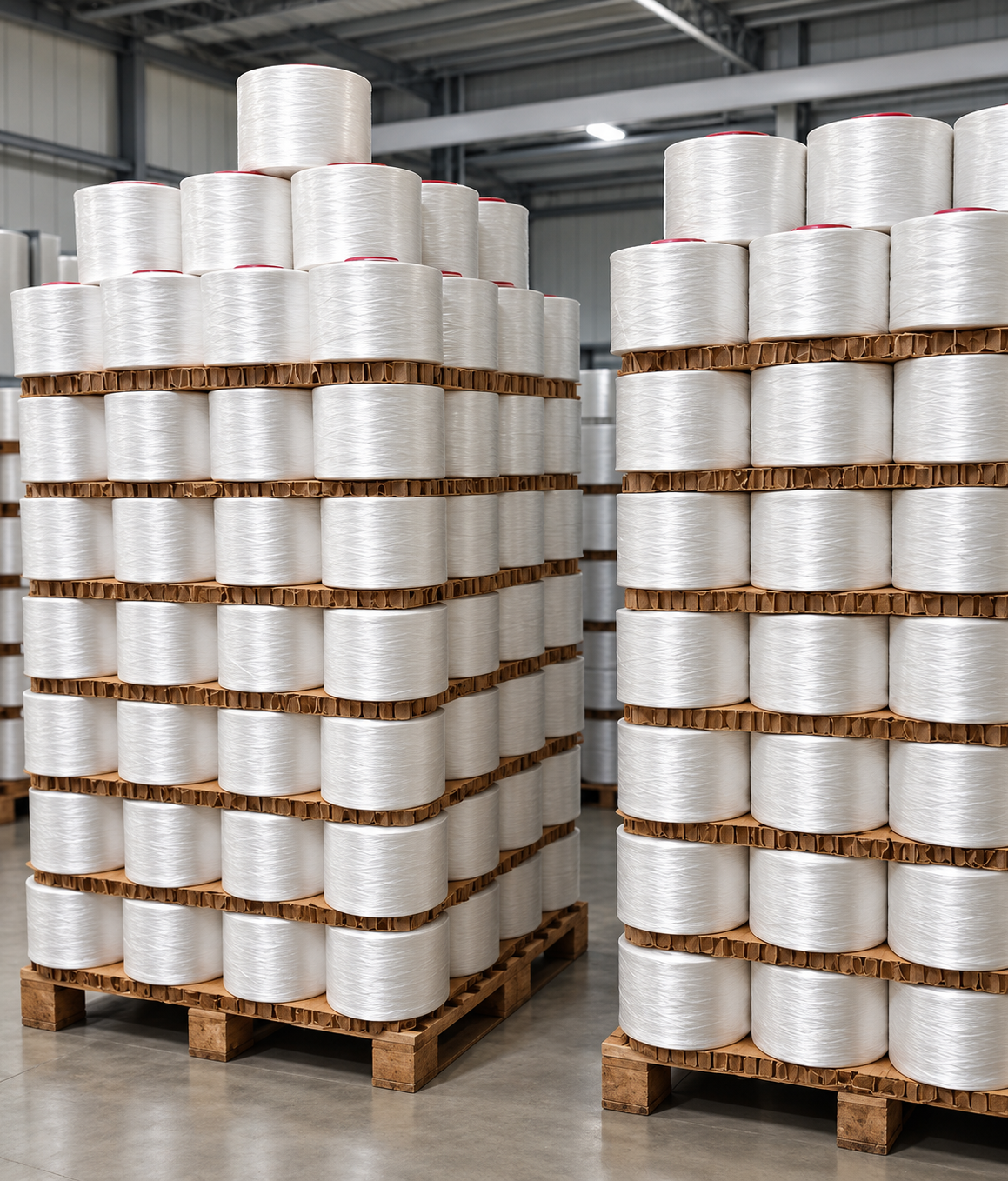

Small Bags & Industrial Uses
PPMF yarn is supplied for smaller sack stitching and technical industrial end uses:

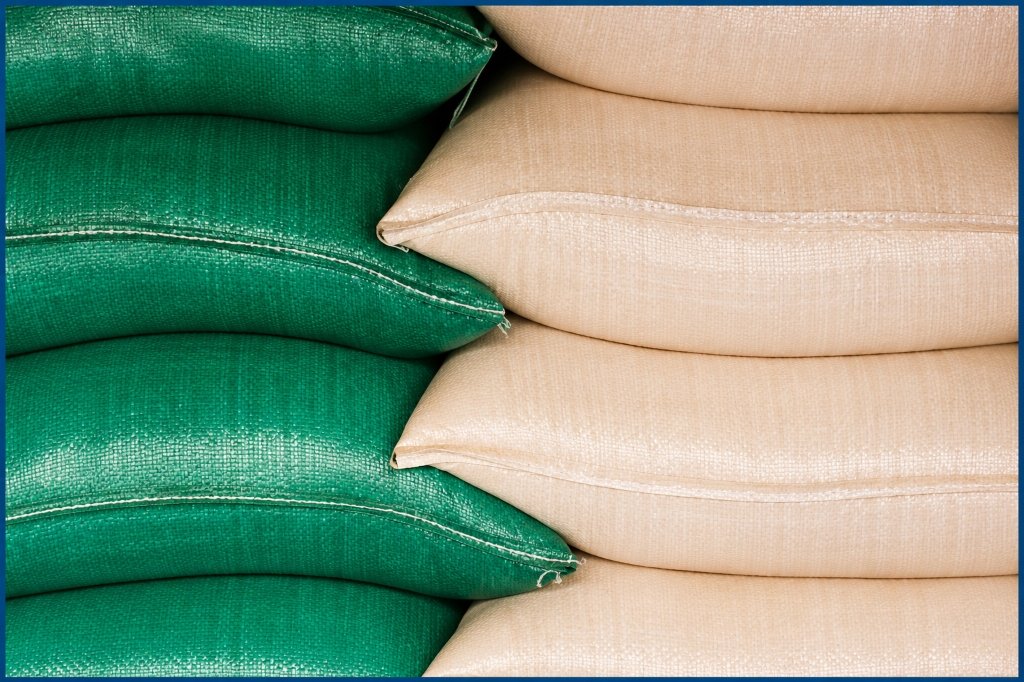

Ideal for cement sacks, fertilizer bags, chemical bags, sugar bags, braiding, twines, webbing, geotextiles, and cut fibres.

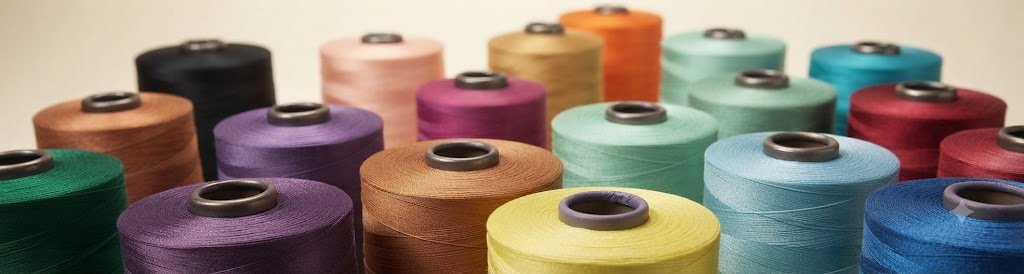

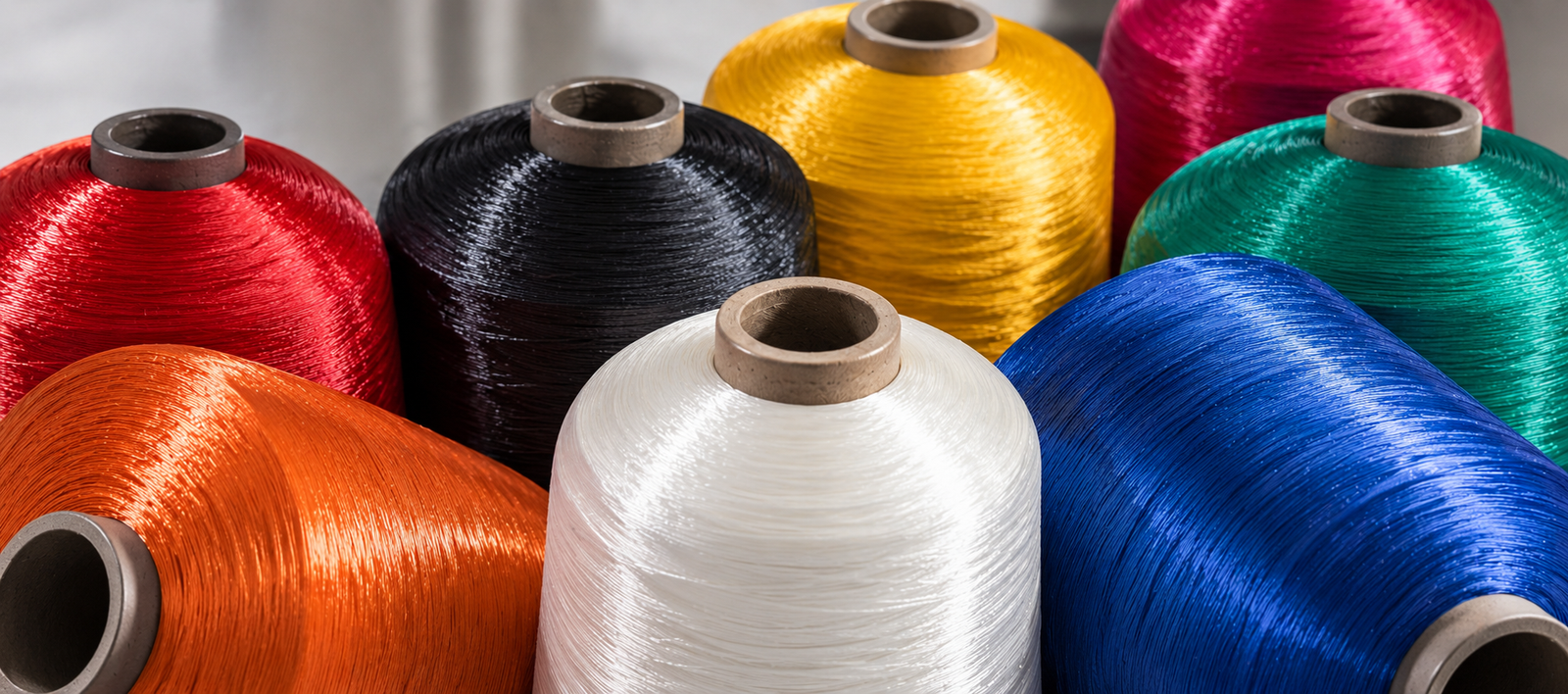

Custom Colours
Gotawat Industries manufactures yarn in different vibrant and industrial shades according to customer specifications. Masterbatch colour requirements can be matched precisely to your application and finished product branding.
UV-Treated PPMF Yarn
For outdoor exposure and FIBC jumbo bags, Gotawat Industries typically incorporates 2% – 2.5% UV masterbatch (application & specification dependent). UV treatment enhances resistance to sunlight degradation, maintaining strength and color stability under elevated temperatures.
Raw Materials & Job-Work Options
The primary raw material used is high-grade Polypropylene (PP). Gotawat Industries sources polypropylene from established global and domestic suppliers:
Contract Job-Work Production
Customers may also provide their own specified polypropylene raw material for job-work contract production, which Gotawat Industries processes into high-tenacity PPMF yarn according to agreed parameters.

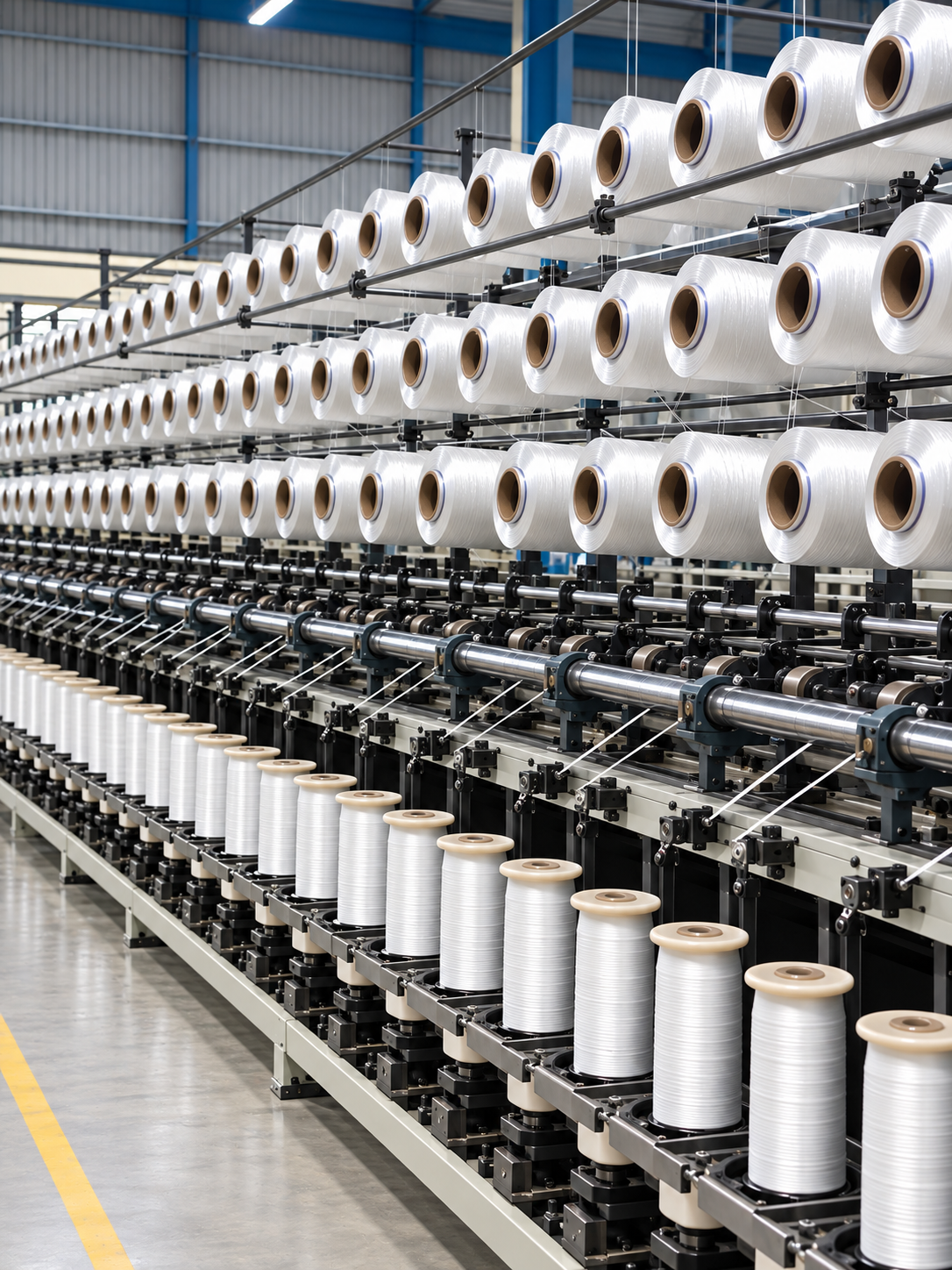

Manufacturing Facility & Machinery
Located in Sompura KIADB Industrial Area, Bengaluru, our production plant is equipped with specialized European and precision equipment:
- German Oerlikon Neumag Production Line
- Extrusion & spinning system
- Precision spinnerets
- Drawing godets for elongation control
- High-speed winders
- Twisting machines (70 – 150+ TPM)
- Doubling machines for multi-ply yarn
- In-house yarn testing laboratory
Quality Control & Testing
Quality consistency is a major focus of our manufacturing process. Gotawat Industries maintains an in-house testing laboratory carrying out stringent quality checks during production and prior to dispatch:
Strength Testing
Yarn breaking load (KGF) is rigorously tested to ensure it meets exact specification limits.
Elongation Testing
Elongation percentages are measured to guarantee performance under tension and load.
Batch-wise Denier Checking
Denier is checked batch-wise during live extrusion runs to prevent linear mass variations.

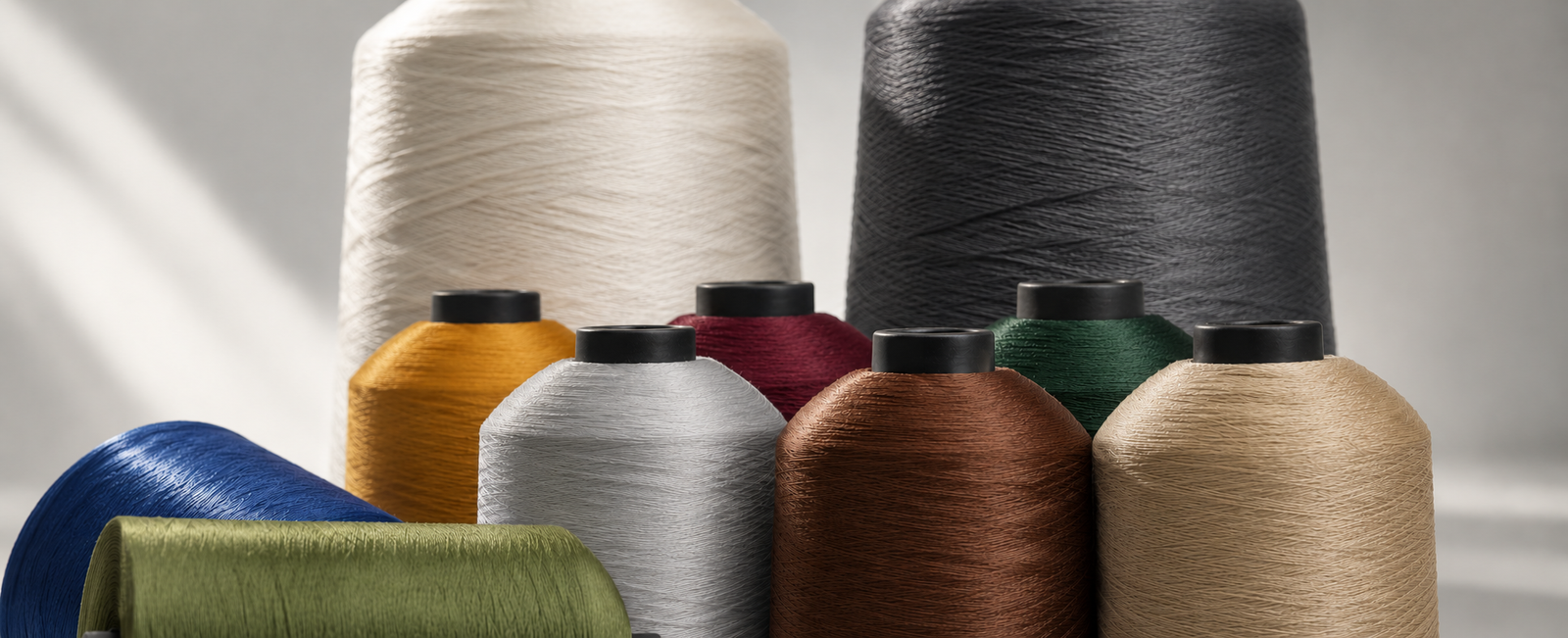

Physical Inspection
Finished spools undergo 100% physical inspection during packing prior to final dispatch.
Why Customers Choose Us
- ~3 Decades Experience: Deep expertise in multifilament yarn manufacturing.
- Direct Manufacturer, Not Trader: Complete control over production parameters.
- Full Customisation: Tailored denier, colour, strength, twist, and packing.
- Consistent Quality: Strict in-process and pre-dispatch laboratory testing.
- Responsive Service: Immediate investigation and resolution of quality feedback.
Customer Segments Served
- FIBC / Jumbo Bag Manufacturers
- Small Bag & Woven Sack Manufacturers
- Industrial Stitching & Back-closure Yarn Users
- Braiding & Twine Manufacturers
- Webbing & Narrow Fabric Weavers
- Geotextile & Civil Engineering System Producers
- Specialized Industrial Filter & Technical Fiber Users
